Flexible Industrial Door

Product Basic Information
Product Name: Flexible Industrial Door
Product Description: Flexible industrial door suitable for large factories, logistics centers, and similar facilities.

Technical Specifications

• Suitable Door Opening: Width 4m–50m, Height 4m–50m

• Opening Speed: 6–9 m/min

• Wind Resistance: Up to Level 13 strong wind

• Internal Structure: Steel or Aluminum Alloy (optional)

• Power System: 2.2–15 kW (depending on configuration)

• Power Supply Requirement: 380V / 50Hz

• Control System: PLC with Variable Frequency Drive (VFD)

• Temperature Range: -30°C to +70°C

• Door Curtain Tensile Strength: 400 daN / 5 cm

Key Product Advantages:

1. Flexible material with excellent wind resistance

2. Designed for industrial use, safe and reliable

3. Variable frequency drive for smooth operation

4. Good thermal insulation, energy-saving and environmentally friendly








   Features of Flexible Doors

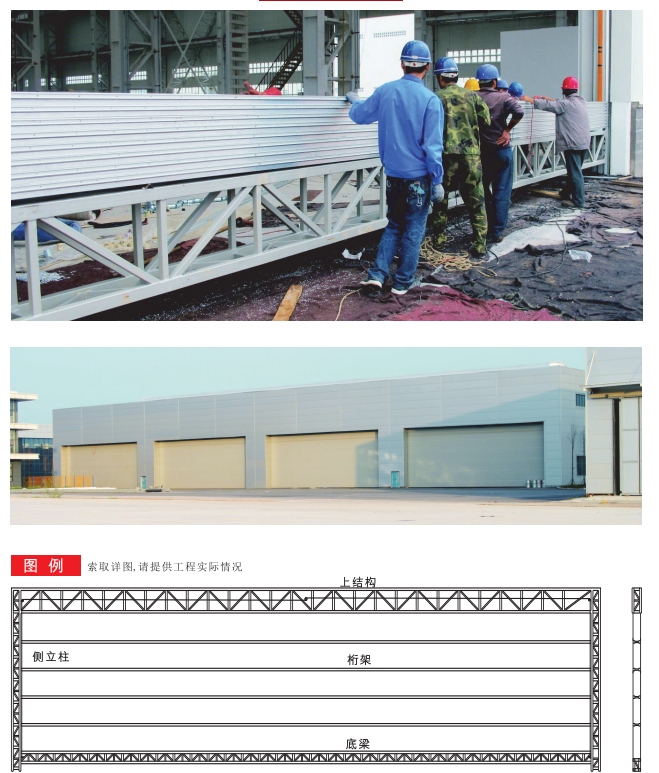

5. Flexible doors are constructed with a combination of structural frame systems and dual-layer PVC fabric panels (inner and outer layers). They are primarily designed for extra-large openings and are widely used in industrial applications requiring large-span access solutions.

6. Key features include:

7. Excellent wind resistance performance, making them suitable for large openings and demanding environments.

8. More cost-effective than rigid industrial doors of comparable size.

9. Continuous technological improvements over the years have enhanced safety and reliability.

10. Equipped with commonly used anti-fall safety systems and multiple monitoring and detection mechanisms.

11. Designed as an overhead-opening door system for efficient operation and space utilization.

12. Available with either steel cable lifting systems or lifting strap systems, depending on project requirements.

13. Custom-manufactured to suit specific site conditions and installation requirements.

14. Available in sizes ranging from 3 m × 3 m up to 50 m × 50 m.

15. Classified as a non-standard industrial door solution, tailored to meet individual project specifications.

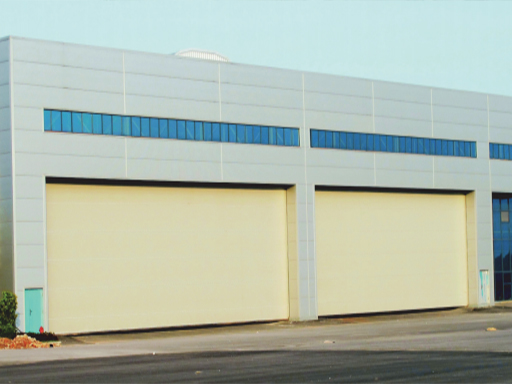

16. Today, flexible doors are widely used in large-scale manufacturing facilities, logistics centers, aircraft maintenance hangars, shipyards, and other industrial buildings requiring oversized access openings.
